In the previous article, we introduced "The XuanTie Team and PLCT Lab Jointly Release a New 32-bit Product-Grade Open-Source Toolchain and Linux Kernel". This article brings the latest productization progress of the new 32-bit (RV64ILP32) effort: the Canaan Kendryte K230D.

Last year, Canaan launched the K230, based on the XuanTie C908, the world's first 64-bit RISC-V AIoT chip with VECTOR 1.0 support. This year, Canaan Kendryte introduced the more highly integrated K230D AIoT chip, reducing memory from external 256MB/512MB to 128MB in-package. Software built on the LP64 ABI had too much memory overhead for the K230D, while the new 32-bit technology improves both memory and cache efficiency. PLCT Lab and the XuanTie team worked together to build a new 32-bit RuyiSDK for the K230D, achieving the first real product deployment of the new 32-bit stack for AIoT devices. Compared with the previous LP64-based SDK, the new 32-bit SDK reduces memory overhead by 30% and improves linked-list traversal performance by 20%, balancing both cost and performance.

K230D RUYISDK Overview

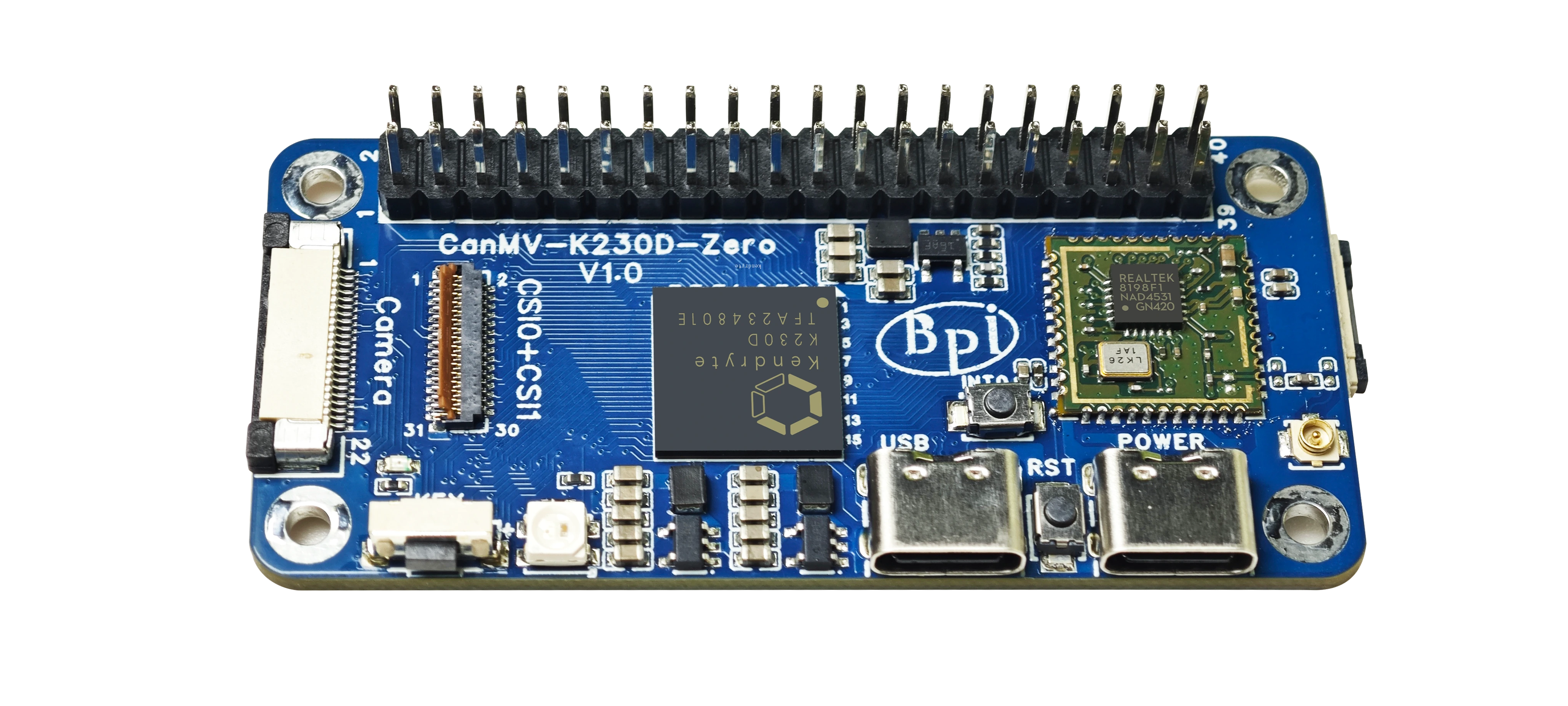

The DAMO Academy XuanTie team, together with Canaan and PLCT Lab of the Institute of Software, Chinese Academy of Sciences, brought the new 32-bit technology to the Banana Pi open-source community's BPI-CANMV-K230D-Zero development board and integrated it with PLCT Lab's RuyiSDK to provide a more convenient user experience:

• Linux kernel upgraded to 6.6, along with toolchain upgrades
• A new 32-bit root filesystem and LVGL support
• VECTOR-based graphics acceleration
• Dual-system support for Linux + NuttX, with flexible big/small core switching
• Support for both the traditional 64-bit and the new 32-bit system configurations

Kernel configuration

	Traditional 64-bit (RV64 LP64)	New 32-bit (RV64 ILP32)
Kernel build command	make ARCH=riscv k230_defconfig all	make ARCH=riscv k230_defconfig 64ilp32.config all

The default configuration differs by only two lines:

CONFIG_ARCH_RV64ILP32=y

CONFIG_32BIT=y

Memory Comparison

The video and image below compare LVGL running on the traditional 64-bit build (left) and the new 32-bit build (right):

Dynamic Memory Comparison	Traditional 64-bit (RV64 LP64)	New 32-bit (RV64 ILP32)
used	37MB	24MB

Static Memory Comparison	Traditional 64-bit (RV64 LP64)	New 32-bit (RV64 ILP32)
kernel code	10282KB	10456KB
rwdata	1126KB	832KB
rodata	5105KB	4464KB
bss	500KB	376KB

Compared with the traditional 64-bit build, the new 32-bit RuyiSDK greatly improves memory efficiency and avoids memory waste in K230D productization.

Performance Comparison

Because pointer data types in LP64 are twice as large as in ILP32, LP64 makes less efficient use of cache. The table below compares doubly linked-list traversal performance on the K230D:

Doubly linked-list traversal (4000 nodes, traversed 50,000 times)

	First run	Second run	Third run	Fourth run	Fifth run	Average execution time
	Unit: nanoseconds					Unit: seconds
LP64	3872221628	3420261850	3774494961	3539484998	4034940590	3.728280805
ILP32	2614749257	2261891517	2680216665	2894499368	2847282036	2.659727769

The results show that ILP32 significantly outperforms LP64 in linked-list traversal.

Related Resources

K230D RuyiSDK: https://github.com/ruyisdk/k230_linux_sdk

For image building details, see: https://github.com/ruyisdk/k230_linux_sdk/blob/dev/README_zh.md

K230D usage guide: https://ruyisdk.org/docs/k230d/intro

Closing Remarks

Unlike earlier architecture efforts focused on user space, such as ARM, x86, MIPS, and SPARC, the current new 32-bit approach provides an ILP32 ABI for the privileged mode of the RV64 architecture, based on the RVA20/22/23 Profiles. This is a path that has not been explored before. Since the release of the new 32-bit toolchain and Linux kernel in March 2024, this work has now reached product deployment on the K230D, cutting memory overhead by 30% and substantially improving cache efficiency. These results further demonstrate the industrial value of the new 32-bit approach.

We warmly welcome developers to participate in the development and improvement of the new 32-bit stack, contribute suggestions and feedback, and help drive it forward. We are committed to building a healthy and active open-source community, continuously investing resources and effort to ensure the stability and reliability of the software while steadily improving its functionality and performance. We also call on more hardware vendors to join this effort and advance the development and innovation of new 32-bit embedded systems together.
